一、說明

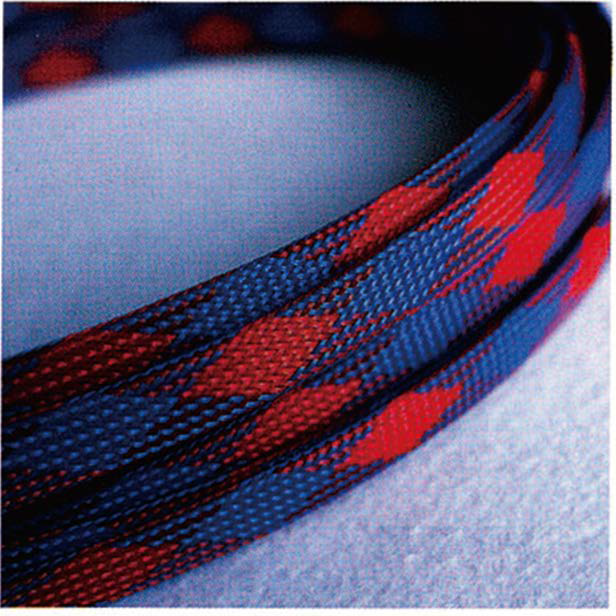

網狀伸縮編織套管采用PET聚酯單絲，尼龍單組等具有堅固、耐磨，抗腐蝕的單絲編織而成，其具有良好的彎曲 性， 回彈性，耐磨性，仲縮性和透氣性，可廣泛使用于線材的護套及保護。 材質：尼龍、聚脂、PET
一、PRODUCT DESCRIPTION
TMesh stretch sleeving using PET polyester monofilament, nylon monofilament with a rugged, abrasion, corrosionresistant monofilament woven, it has good bending resistance, resilience, abrasion resistance, flexibility and breathablllty , can be widely used in wire and protective sheath. Materlal:Nyloon Ployestetr PET.
二、特點
1.耐磨性：可有效防止線材表面割傷損壞，有效保證產品適用的安全性
2.擴充性：可用于各種規則和不規則形狀的線材。網管的OD可隨線材的改變而改變
3.阻燃性：具有VW-1防火特性
二、Features
1.Wear resistance: can effectively prevent damage to the wire surface cuts, effectively ensuring the product is suitable for safety.
2.Extenslblllty: can be used for a variety of regular and irregular shape of the wire. Webmaster wire with an OD can be changed
3.Flammablllty: VW-1 with fire properties.
三、性能指標 (Performance)
| 型號 Model | 自然狀態下 Natural stateOD(mm) | 適用最大適用 Applicable maximumOD(mm) | 適用最大線材 Applicable maximum wireOD(mm) |
| 163020 | 3.00 | 6.00 | 5.00 |
| 163025 | 4.00 | 8.00 | 5.00 |
| 243020 | 4.00 | 12.00 | 6.00 |
| 243025 | 6.00 | 13.00 | 7.00 |
| 322025 | 4.00 | 10.00 | 7.00 |
| 323020 | 6.00 | 14.00 | 7.50 |
| 323025 | 8.00 | 18.00 | 8.00 |
| 402025 | 8.00 | 14.00 | 7.00 |
| 403020 | 8.00 | 20.00 | 10.00 |
| 403025 | 10.00 | 22.00 | 12.00 |
| 481025 | 5.00 | 13.00 | 15.00 |
| 482020 | 8.00 | 15.00 | 13.00 |
| 482025 | 8.00 | 17.00 | 14.00 |
| 483020 | 10.00 | 23.00 | 16.00 |
| 483020 | 10.00 | 23.00 | 16.00 |
| 483025 | 14.00 | 25.00 | 16.00 |
| 561025 | 6.00 | 16.00 | 16.00 |
| 562020 | 10.00 | 20.00 | 14.00 |
| 563020 | 12.00 | 30.00 | 18.00 |
| 563025 | 16.00 | 35.00 | 19.00 |
| 643020 | 16.00 | 32.00 | 24.00 |
| 643025 | 18.00 | 38.00 | 25.00 |
| 723020 | 18.00 | 36.00 | 26.00 |
| 723025 | 25.00 | 42.00 | 27.00 |
| 963020 | 25.00 | 56.00 | 32.00 |
| 963025 | 30.00 | 60.00 | 38.00 |
| 1203020 | 35.00 | 66.00 | 40.00 |
| 1203025 | 40.00 | 70.00 | 50.00 |
| 1204025 | 55.00 | 72.00 | 60.00 |
| 966025 | 50.00 | 90.00 | 50.00 |
1.型號說明：比喻161025(16表示總股數1表示每一股的總根數025=0.25MM表示一根線的直徑） (1)Model Description: metaphor 161,025 (16 shows total number of shares, each share represents a total root number, 025 = 0.25MM represents a wire diameter)
2.適用最大OD說明：最大OD可以根據編織網的稀密度改變編織越密編織網擴充的最大尺寸就越小 (2) applies maximum OD Description: Max OD can dilute braid density changes, the more dense weave, braid the maximum size of the smaller expansion
