一、說明
1、材料：輻射交聯改性氖聚合輸
2、收縮倍率： 2:1
3、特點：耐高溫， 透明， 阻燃， 珊壁， 柔軟(150°C) /半硬質(175°C)
4、收縮溫度： 150°C/175°C 通過150°C &DOV VW-1等級UL認證
5、標準顏色：透明

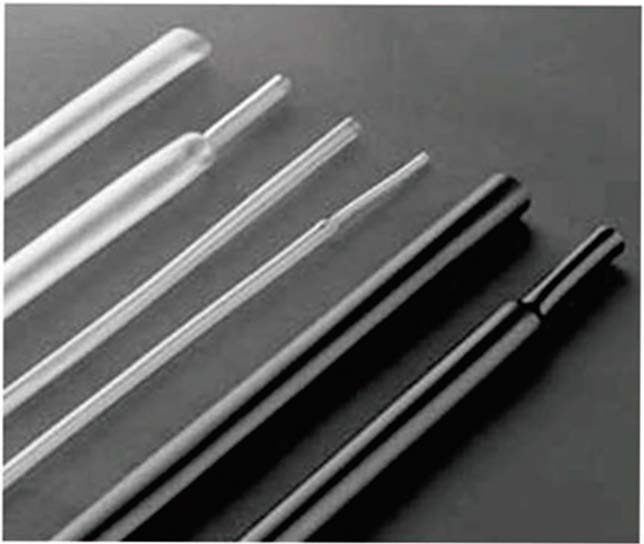

一、PRODUCT DESCRIPTION
1、Material: radiation cross-linked modified fluoropolymer
2、Shrink ratio: 2:1
3、Features:Temperature. transparent, flame retardant, thin-walled Soft (150 ℃) / semi-rigid (175 ℃)
4、Shrinkage temperature, 150°C/175°C By 150℃600VVW-1 rating UL certification
5、Standard Color: Transparent
二、應用范圍
該產品具有良好的耐熱，耐磨損，抗機械損傷和耐化學介廈腐蝕性能 ，能透用于那些可能存在腐蝕性空氣，熟循環或機械應力作用的不利環境，良好的阻燃性麓，還被應用于汽車。航空，船舶，電子設備等儀器配線的場合；另外，良好的透明性還適合于電子元件的包封元件的區分別
二、APPLICATION
The product has good heat resistance, wear resistance, resistance to mechanical damage and chemical resistance to corrosion, can be applied to those who may be the presence of corrosive air, thermal cycling or mechanical stress adverse environmental effects; good flame retardant properties. was also used in automobiles. Aviation, marine. electronic equipment and other equipment where wiring; addition, good transparency and is also suitable for encapsulating electronic components separately element area
三、技術指標
| 項目Project | 測試方法 Testing method | 柔軟(150℃)特性 Soft (150℃) Features | 半硬質 (175℃)特性 Semi-rigid (175℃) Features |
| 比重 Proportion | ASTM D792 | ≤1.8g/cm3 | ≤1.8g/cm3 |
| 拉伸強度Tensile strength | ASTM D2671 | ≥24.5MPa | ≥34.5MPa |
| 斷裂伸長率 Elongation at break | ASTM D2671 | ≥150% | ≥150% |
| 老化后斷裂伸長率 Elongation at break after aging | 225℃/168h | ≥100% | ≥50% |
| 熱沖擊 Thermal Shock | 275℃/4h | 不滴落，不開封No dripping, no cracking | 不滴落，不開封No dripping, no cracking |
| 低溫沖擊 Low-temperature impact | -55℃/4h | 不開裂 no cracking | 不開裂 no cracking |
| 介電強度 Dielectric strength | ASTM D2671 | ≥15.7KV/mm | ≥31.5KV/mm |
| 體積電阻率 Volume resistivity | ASTM D257 | ≥1013Ω.cm | ≥1013Ω.cm |
| 燃燒性能 Combustion performance | Ul224 | By VW-1 | By VW-1 |
| 規格SPC | 收縮前最小內徑 Minimum diameter before shrinking | 收縮前最大內徑 Maximum diameter before shrinking | 完全收縮后壁厚 After the wall is fully retracted | |||
| mm | Inch | mm | Inch | mm | Inch | |
| 3/64 | 1.20 | 0.046 | 0.6 | 0.023 | 0 25 士0.05 | 0.01 土0.02 |
| 1/16 | 1.60 | 0.063 | 0.8 | 0.031 | 0 25 土 0.05 | 0.01 土0.02 |
| 3/32 | 2.40 | 0.093 | 1.2 | 0.046 | 0.25土0.05 | 0.01 土0.02 |
| 1/8 | 3.20 | 0.125 | 1.6 | 0.062 | 0.25 士0.05 | 0.01 土0.02 |
| 3/16 | 4.80 | 0.187 | 2.4 | 0.093 | 0.25 土0.05 | 0.01 土0.02 |
| 1/4 | 6.40 | 0.250 | 3.2 | 0.125 | 0.33 土0.05 | 0.013 0.02 |
| 3/8 | 9.50 | 0.375 | 4.8 | 0.187 | 0.33士0.05 | 0.013土0.02 |
| 1/2 | 12.7 | 0.500 | 6.4 | 0.250 | 0.33 土0.05 | 0.013士0.02 |
| 3/4 | 19.1 | 0.750 | 9.5 | 0.375 | 0.43 土0.08 | 0.017 土0.03 |
| 1 | 25.4 | 1.000 | 12.7 | 0.500 | 0.48 土0.08 | 0.019 士0.03 |
